Aluminum Coated Fiberglass Tape

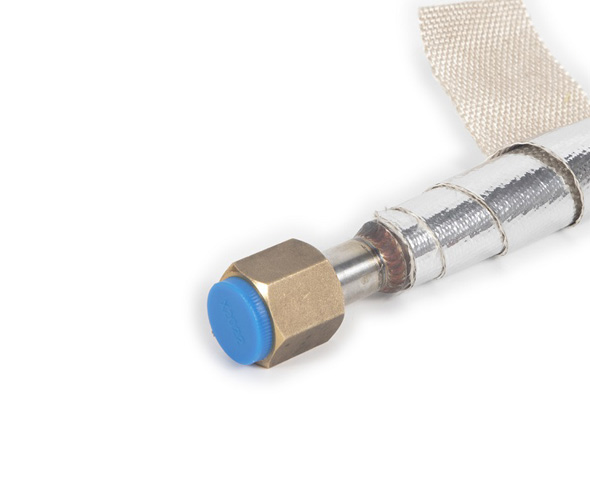

QIAN-ZE aluminum coated fiberglass tape provides the same protection against extreme heat conditions and occasional direct flames as aluminum coated fiberglass sleeve but in a versatile way in that it can easily be cut and configured. It is specially designed to protect components of irregular shape or varying dimension tapered pipes. Typically, the thermal insulation aluminum foil coated fiberglass tape is overlapped by 30% when winding, which provides the entire assembly with enhanced protection.


Good thermal insulation and radiation resistant performance make QIAN-ZE aluminum foil coated fiberglass tape withstand continuous exposure to 250℃(482℉) that is widely used in automotive under-the-hood protection.


QIAN-ZE aluminum heat resistant foil/metal tape with adhesive backing can adhere to itself with complete, inseparable bonding promptly. These self-adhesive aluminum foil tapes are cut from a complete aluminum foil coated fiberglass cloth which means any sizes within 1200mm(47”) width can be customized on your need.

Aluminum Coated Fiberglass Tape Get a Quote
  • Aluminum Heat Insulation
  • Thermal Insulation Aluminium Foil
  • Aluminum Heat Insulation
  • Thermal Insulation Aluminium Foil
  • Aluminum Heat Insulation
  • Thermal Insulation Aluminium Foil
  • Aluminum Heat Insulation
  • Thermal Insulation Aluminium Foil

Quick Reference of Aluminum Coated Fiberglass Tape

Materials

E-grade Fiberglass & Aluminum Foil

Recommended Operating Temperature


Continuous: 250℃(482℉) (Aluminum Foil)

650℃(1200℉)(E-grade Fiberglass)


Size Range

Non-adhesive Tape: 50mm(2")x1.5mm(0.059")x5/10/15m

Adhesive Tape: Width≤1200mm(47")

Color

Silver

Typical Industries

Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)

Metals, Iron & Steel

Hose Fabrication

Oil & Gas

Application

Hose and Cable Heat Protection

Radiation Resistant

Water/Oil Proof

Specification of Aluminum Coated Fiberglass Tape

Aluminum Coated Fiberglass Tape

XM Part No.

Width

Wall Thickness

Roll Length

mm

inch

mm

inch

m/r

XM-AT-05

50

2

1.5

0.059

5

XM-AT-10

50

2

1.5

0.059

10

XM-AT-15

50

2

1.5

0.059

15

Aluminum Coated Fiberglass Tape
