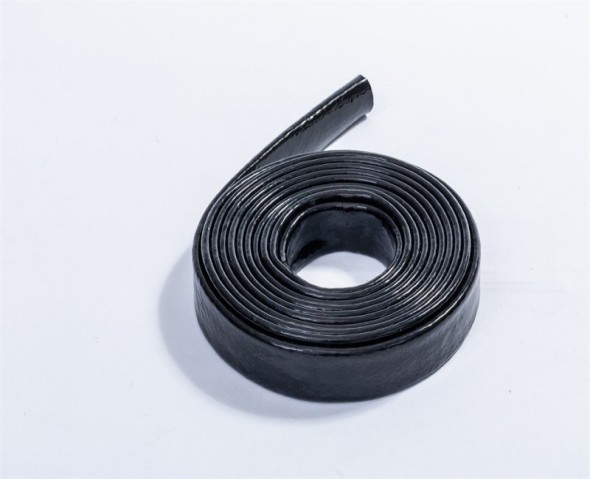

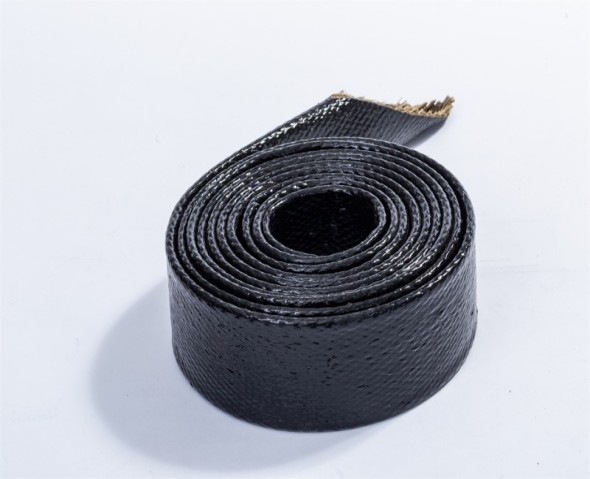

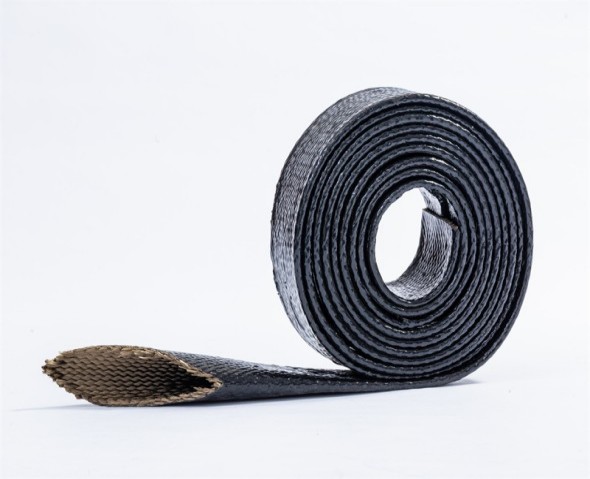

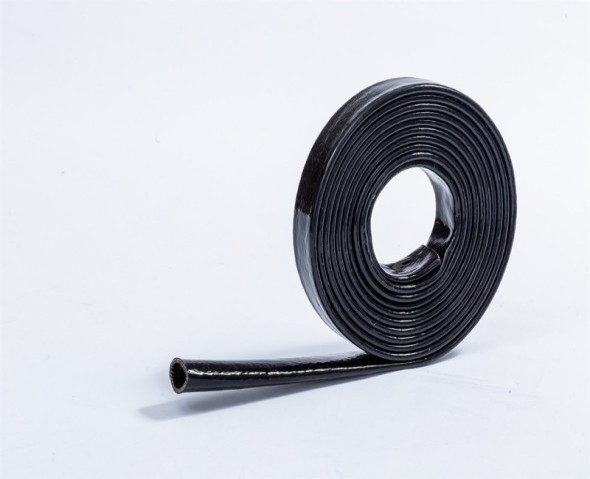

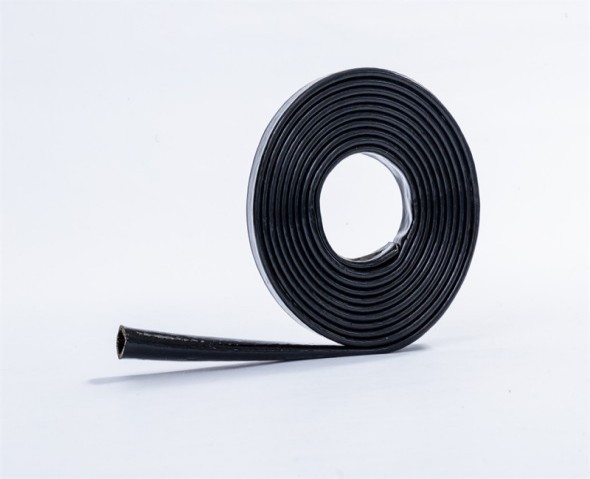

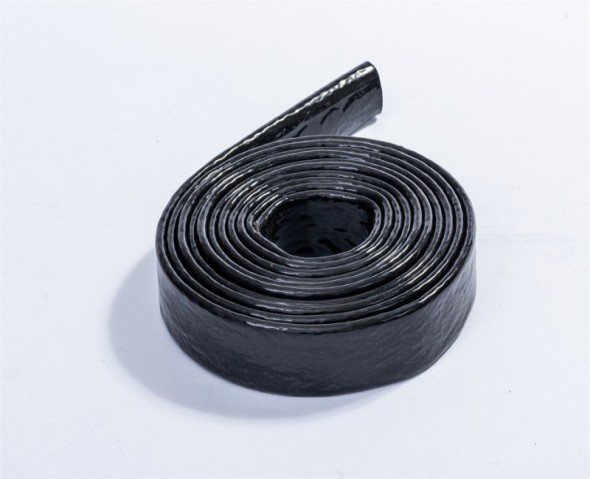

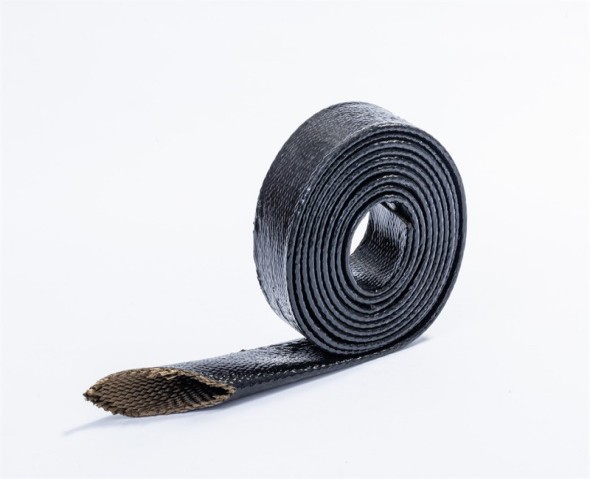

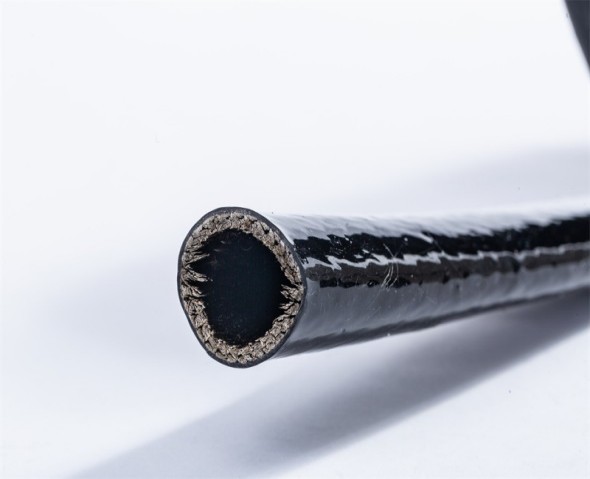

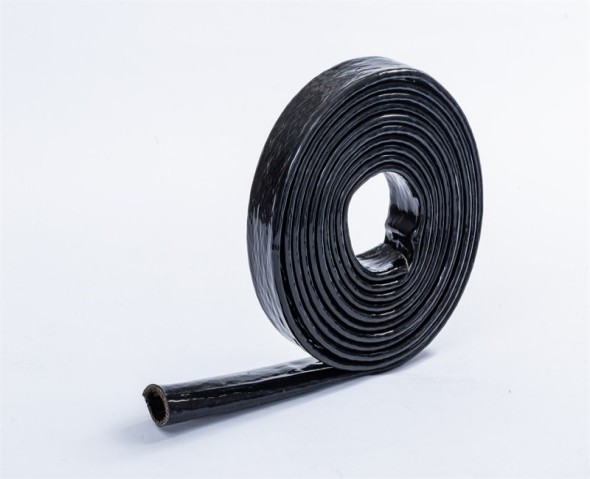

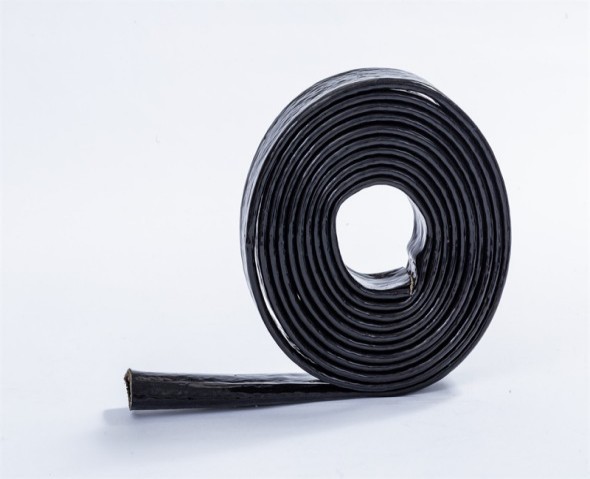

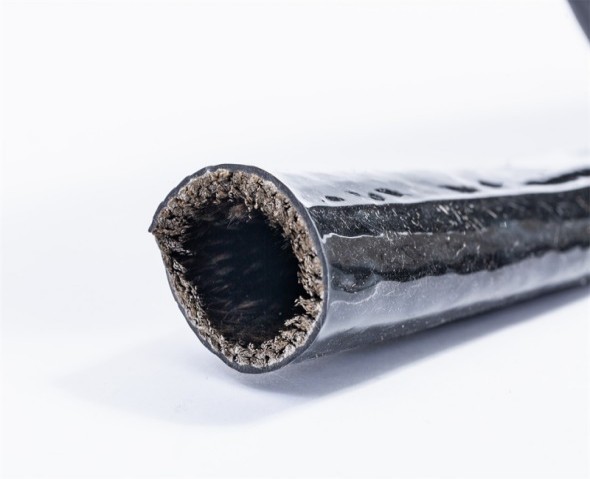

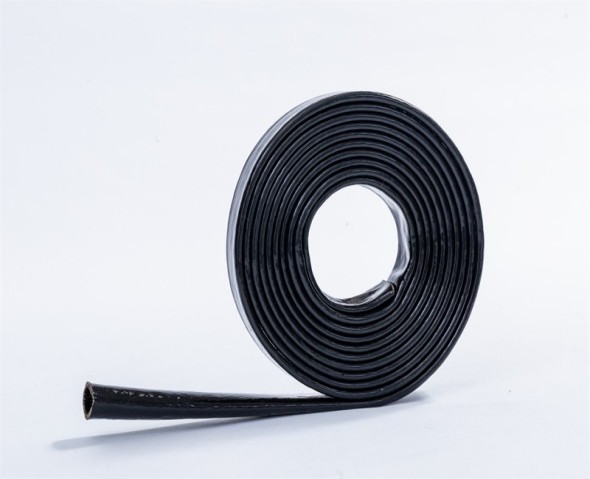

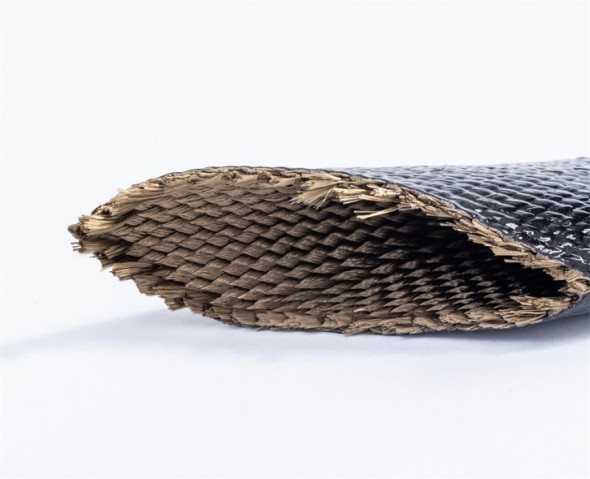

Silicone Coated Basalt Sleeve

QIAN-ZE silicone coated basalt sleeve is specialized in protecting wires, cables, hoses, oil lines from extreme heat conditions and electric insulation performance in a flexible way, which are widely used in iron metallurgy industry, industrial furnaces, aerospace, nuclear power, etc. The braided basalt products are the ultimate options for extreme heat conditions which is also easy to install and cut and will provide years of abrasion protection.


Good thermal insulation and fire resistant performance make QIAN-ZE silicone fiberglass sleeve, a silicone thermal insulation, withstand continuous exposure to 800℃(1472℉), providing a 540℃(1132℉) increase in temperature protection over fiberglass products.


Silicone Coated Basalt Sleeve Get a Quote
  • Silicone Coated Fiberglass Sleeve
  • Silicone Fiberglass Sleeve
  • Silicone Fibreglass Sleeve
  • Silicone Thermal Insulation
  • Silicone Coated Fiberglass Sleeve
  • Silicone Fiberglass Sleeve
  • Silicone Fibreglass Sleeve
  • Silicone Thermal Insulation
  • Silicone Coated Fiberglass Sleeve
  • Silicone Fiberglass Sleeve
  • Silicone Fibreglass Sleeve
  • Silicone Thermal Insulation
  • Silicone Coated Fiberglass Sleeve
  • Silicone Fiberglass Sleeve
  • Silicone Fibreglass Sleeve
  • Silicone Thermal Insulation

Silicone Coated Basalt Sleeve Features and Benefits

Basalt texturized and filament sleeving takes advantage of the strength, flexibility, and excellent thermal properties inherent to basalt fibers. In addition, basalt is environmentally friendly and 100% recyclable. Applications include pipe and hose covers, wiring, spark plug boot covers, cable protection, and exhaust sleeving. Durable and flexible for ease of installation. Thermal protection for temperatures up to 1400°F (760°C).


What is silicone fibreglass sleeve used for?

Silicone fibreglass sleeve can also withstand extremely high temperature; Therefore, it is often used as thermal protection for items such as wires, cables and hoses that continue to be in harsh environments, such as items in engine manifolds and exhaust systems.

Meanwhile, the silicone fiberglass sleeve can protect wires and cables in high temperature environment. As the secondary electrical insulation and mechanical protection of high-voltage cables. Insulate hoses and small pipes to help reduce energy loss. Provide anti-wear protection for hoses and cables.



Quick Reference of Silicone Coated Basalt Sleeve

Materials

Basalt Fiber & Silicone Rubber Coating

Recommended Operating Temperature


Continuous Exposure: 800℃(1472℉)


Size Range

ID: 10mm-100mm(3/8"-4")(Larger sizes can be customized)

Color

Black

Typical Industries

Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)

Metals, Iron & Steel

Hose Fabrication

Oil & Gas

Application

Hose and Cable Heat Protection

Water/Oil Proof

Abrasion Protection

Electric Insulation

Specification of Silicone Coated Basalt Sleeve

Silicone Coated Basalt Sleeve

XM Part No.

Inner Diameter

Wall Thickness

Roll Length

mm

inch

mm

inch

m/r

XM-BS-10

10

3/8

0.6

0.024

100

XM-BS-12

12

1/2

0.6

0.024

100

XM-BS-15

15

5/8

0.6

0.024

100

XM-BS-20

20

3/4

0.7

0.028

100

XM-BS-25

25

1

0.7

0.028

50

XM-BS-30

30

1-1/8

0.8

0.031

50

XM-BS-35

35

1-3/8

0.8

0.031

50

XM-BS-40

40

1-5/8

0.8

0.031

50

XM-BS-45

45

1-3/4

0.9

0.035

25

XM-BS-50

50

2

0.9

0.035

25

XM-BS-55

55

2-1/8

0.9

0.035

25

XM-BS-60

60

2-3/8

1.0

0.039

25

XM-BS-65

65

2-1/2

1.0

0.039

25

XM-BS-70

70

2-3/4

1.1

0.043

25

XM-BS-75

75

3

1.1

0.043

25

XM-BS-80

80

3-1/4

1.1

0.043

25

XM-BS-85

85

3-3/8

1.2

0.047

25

XM-BS-90

90

3-1/2

1.2

0.047

25

XM-BS-100

100

4

1.2

0.047

25


Silicone Coated Basalt Sleeve
