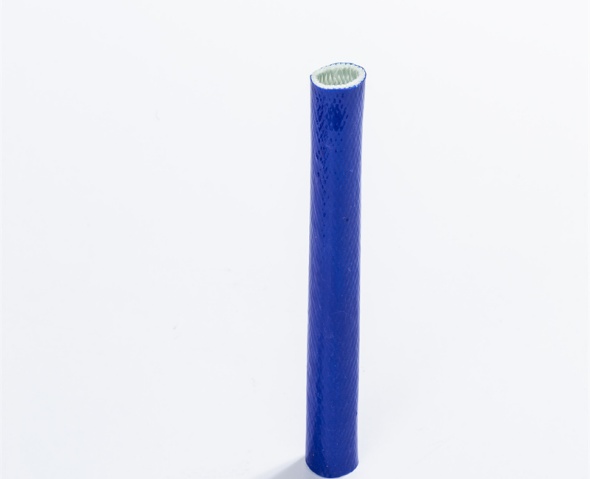

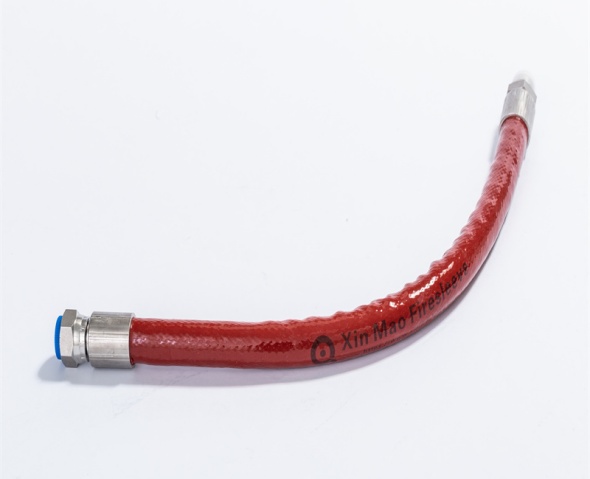

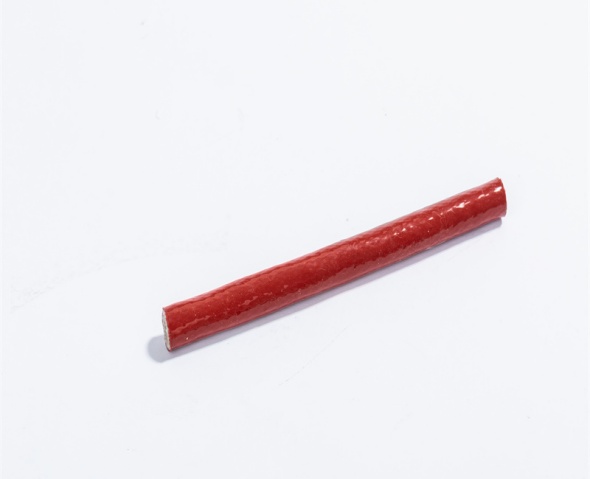

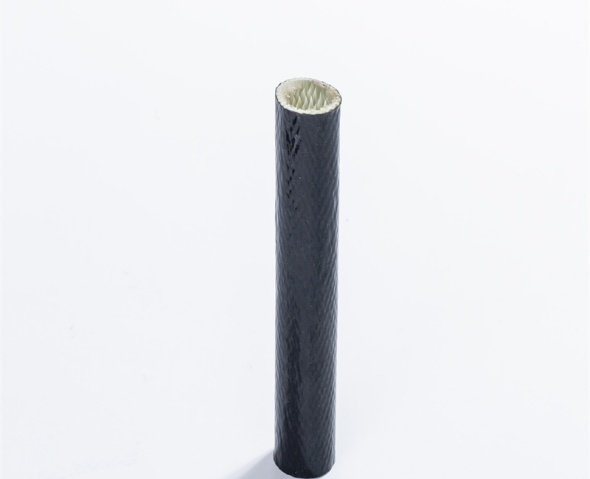

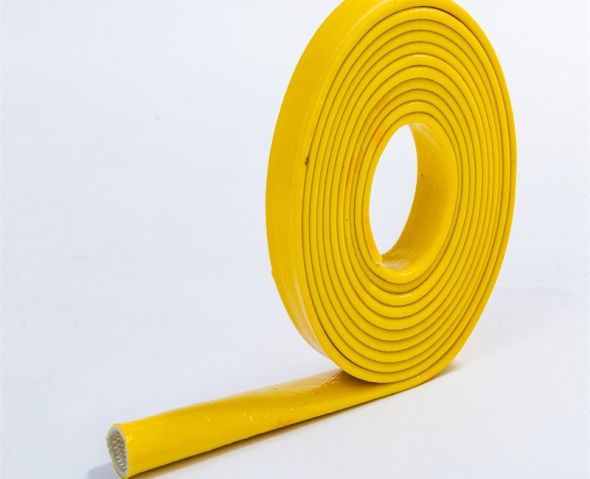

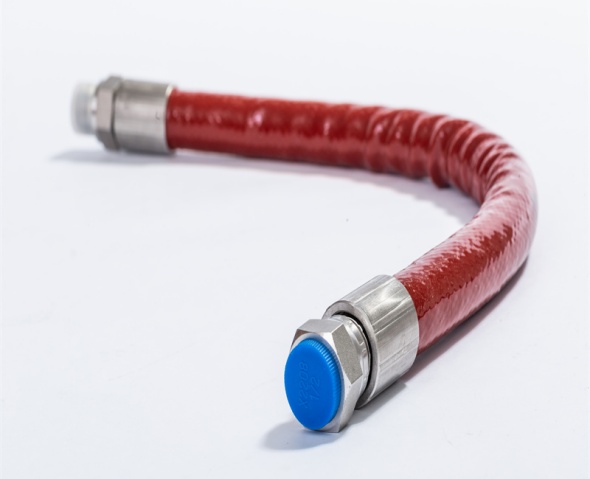

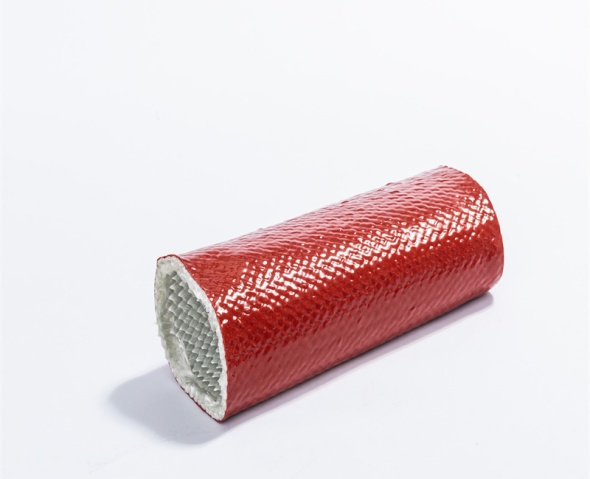

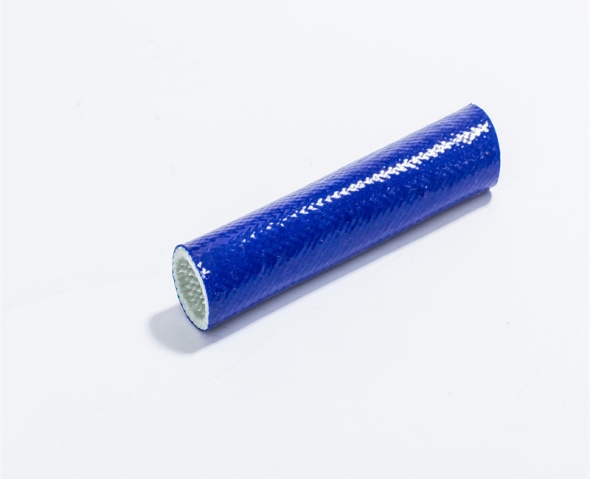

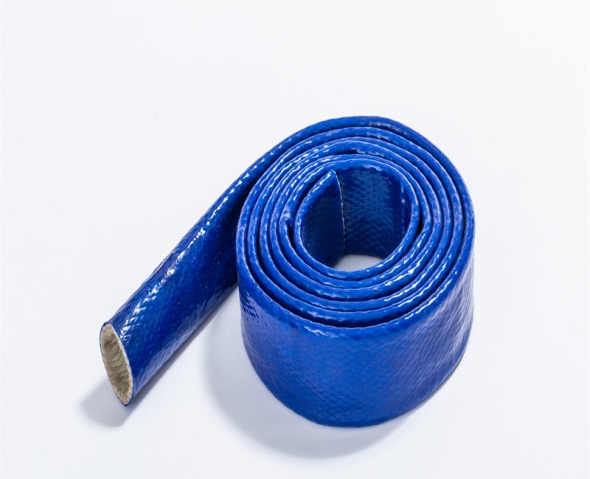

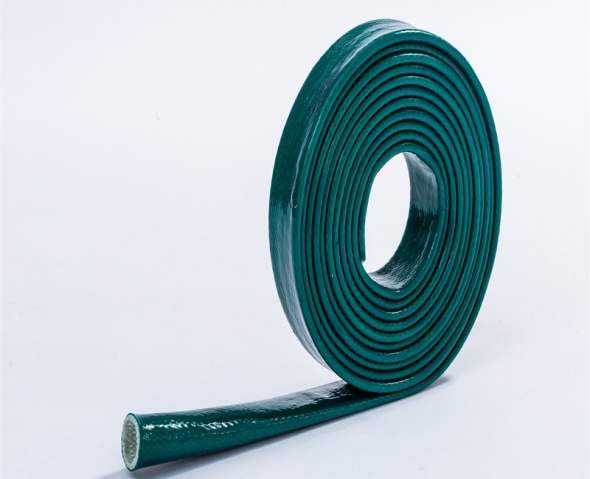

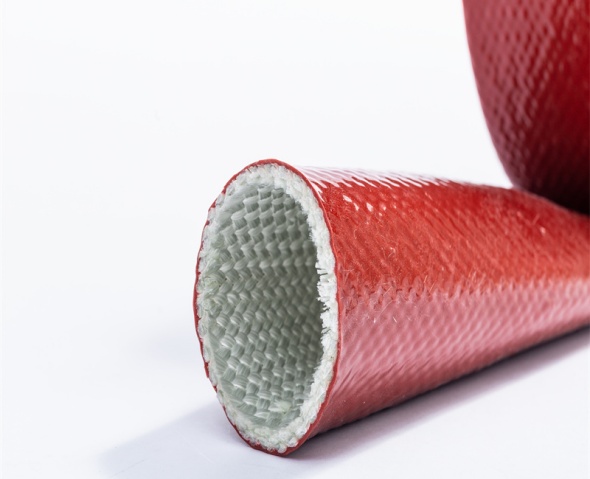

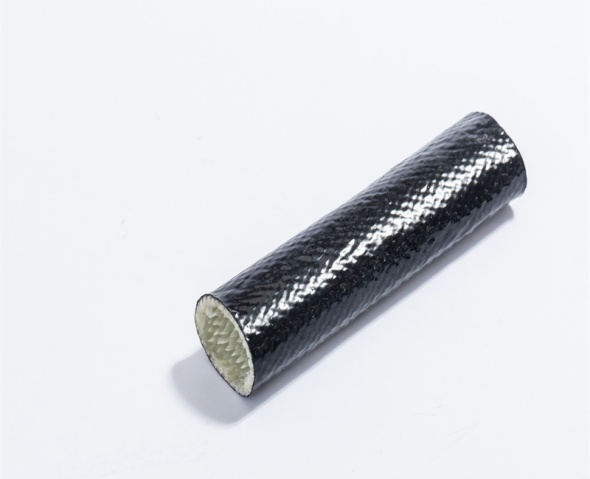

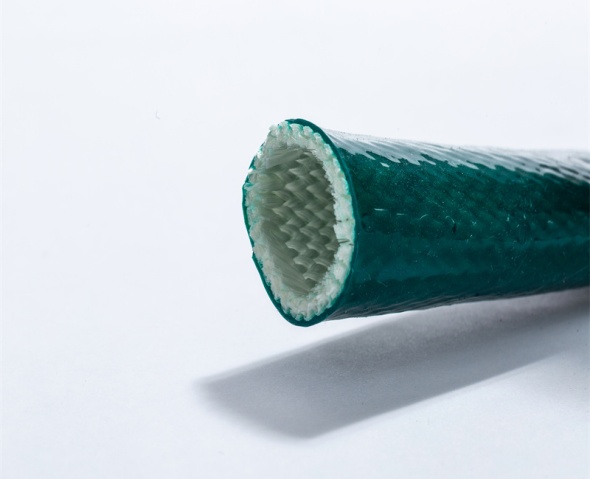

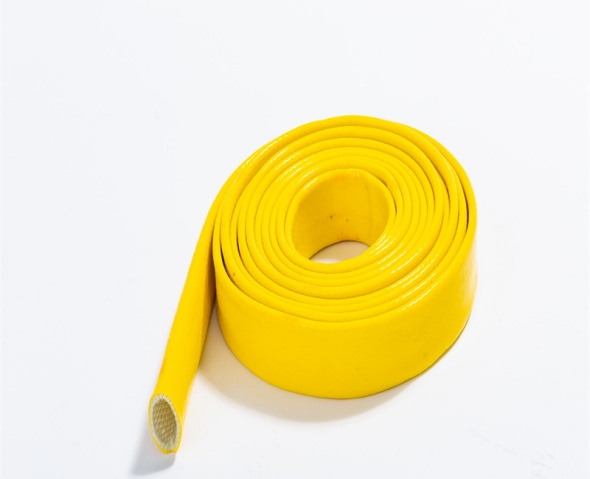

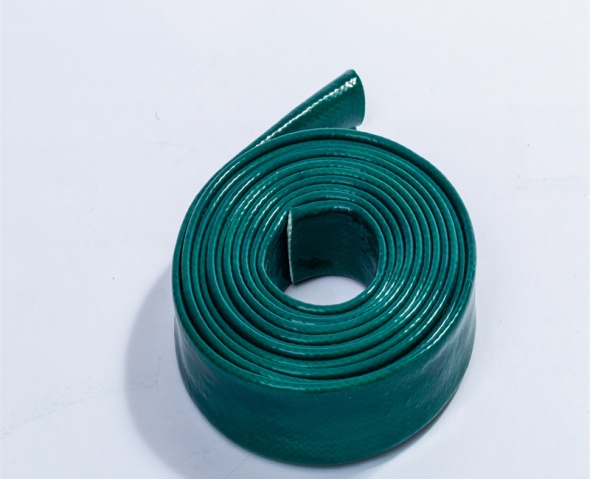

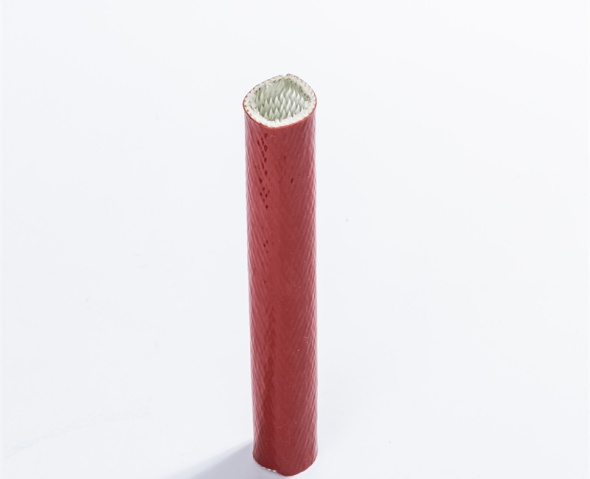

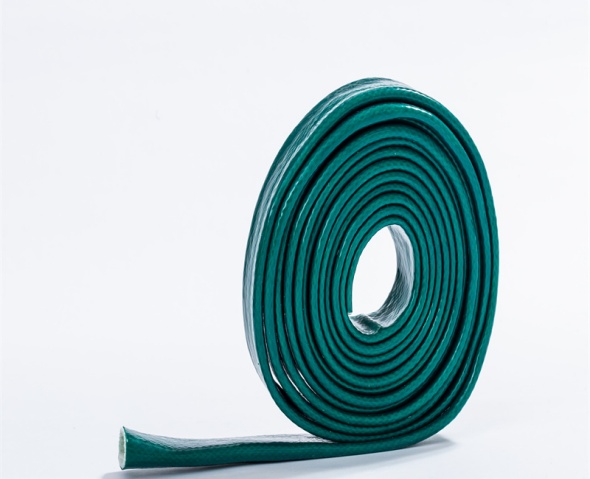

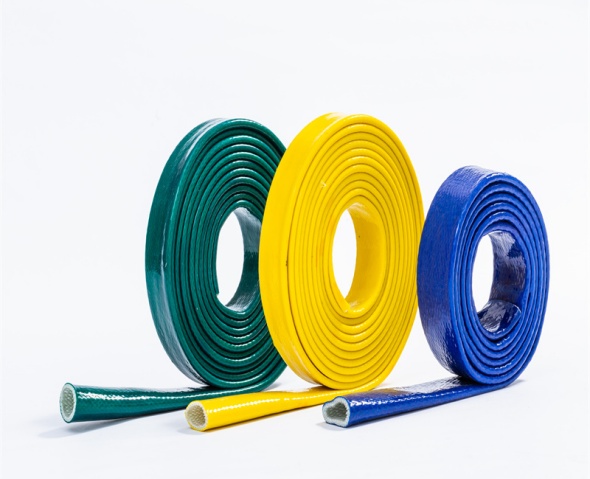

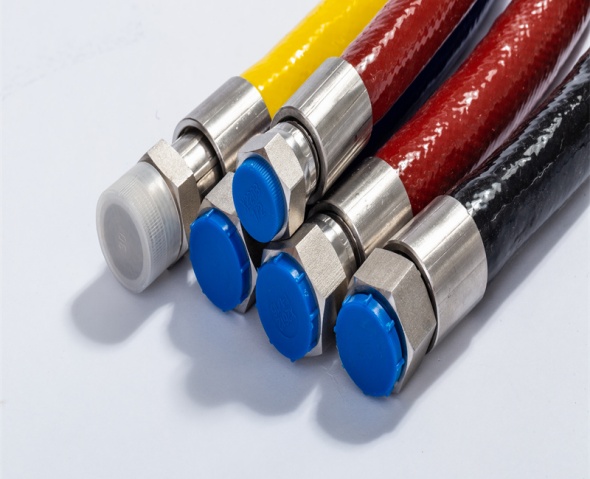

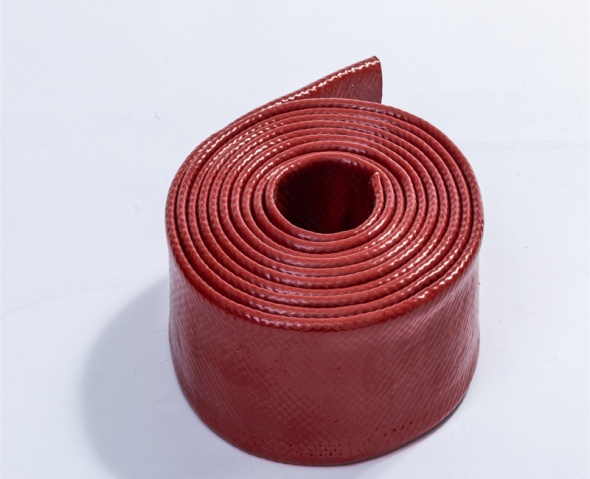

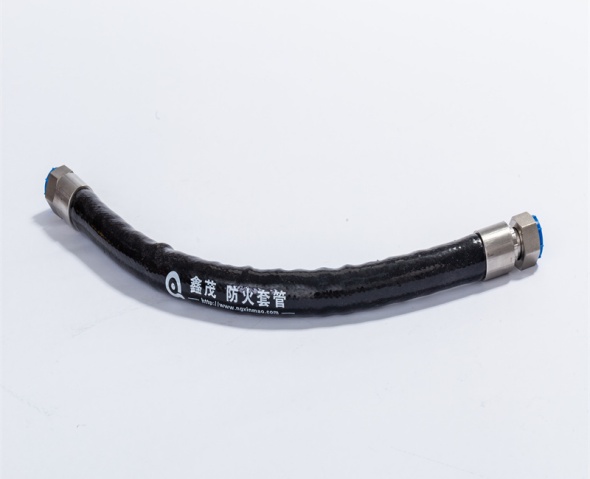

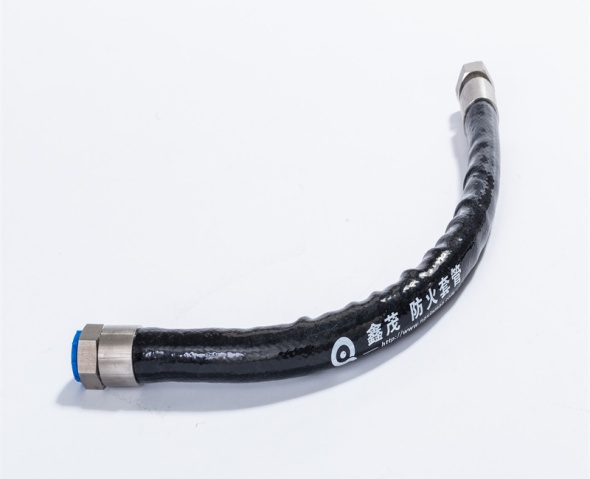

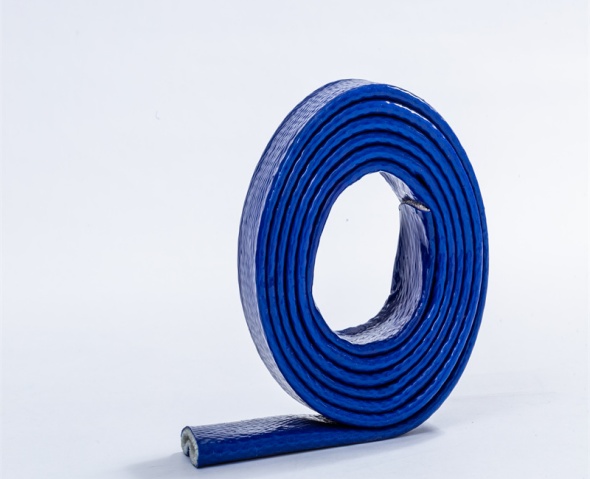

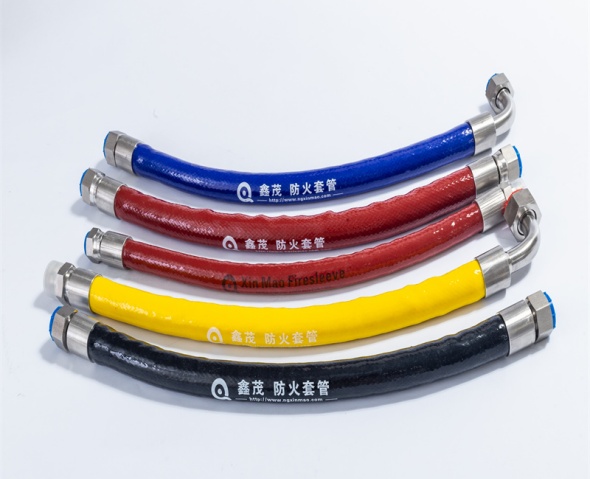

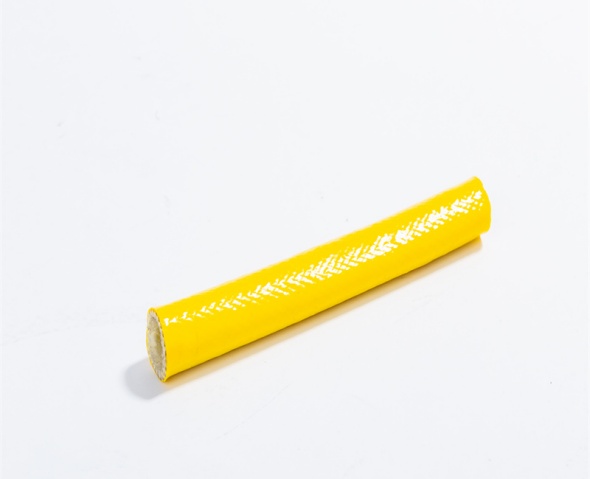

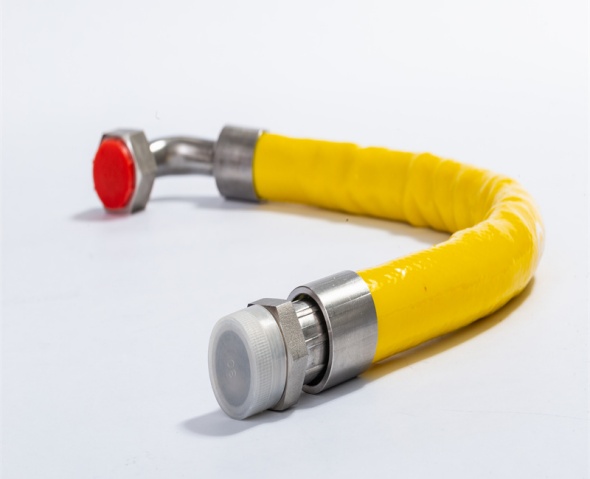

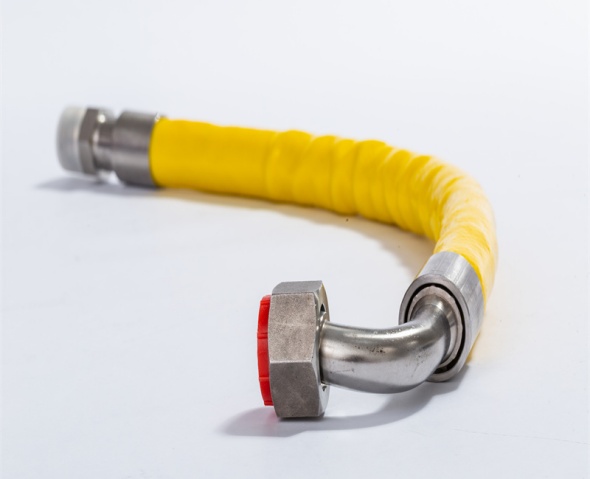

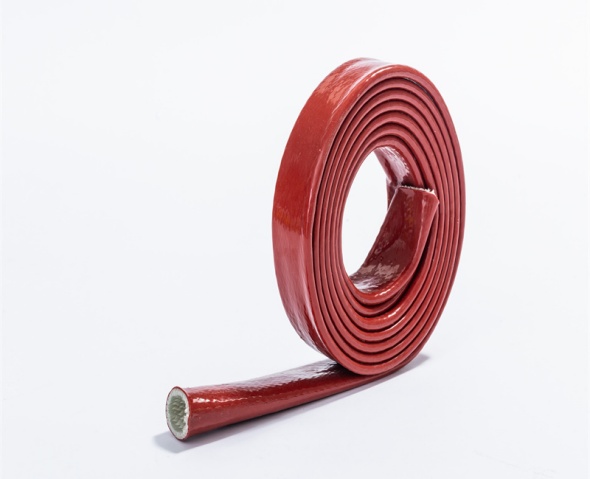

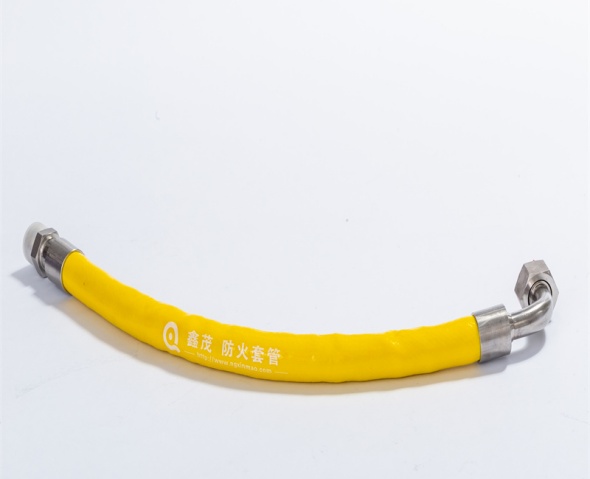

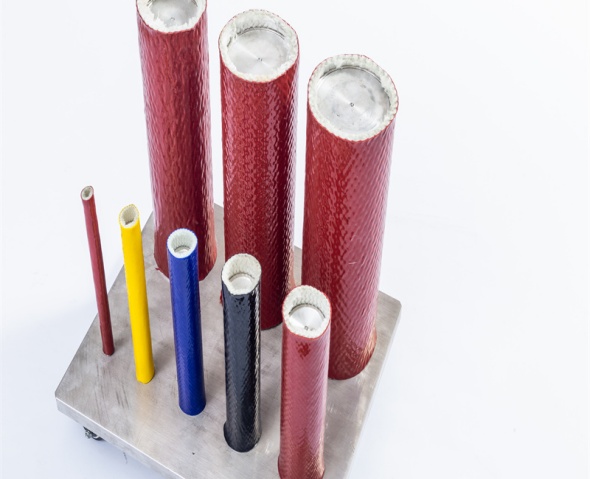

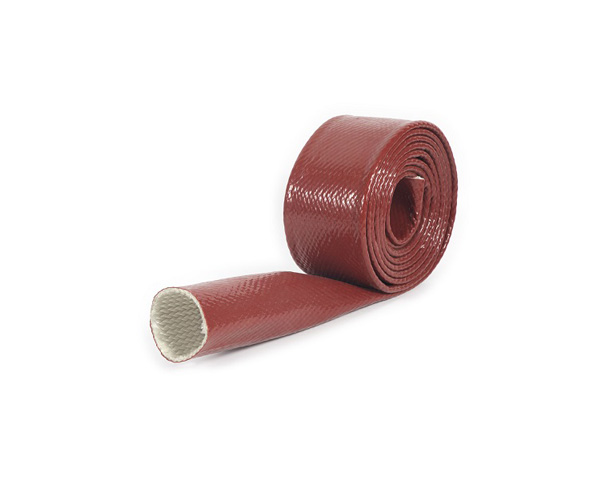

Silicone Coated Fiberglass Hose Fire Sleeve

Name: Silicone Coated Fiberglass Hose Fire Sleeve
Brand: Ningguo Xinmao Fiberglass Products Co., Ltd.

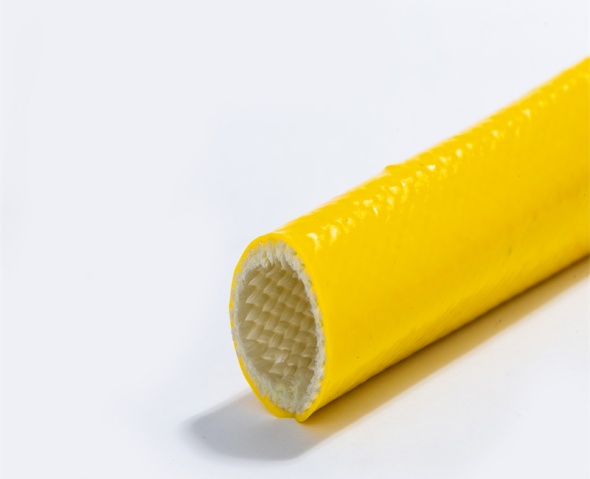

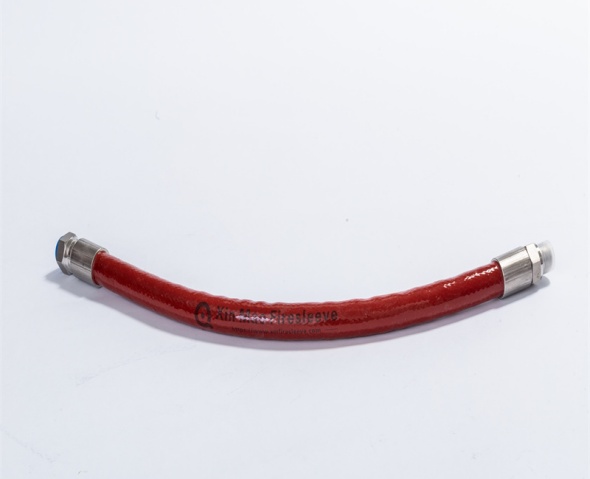

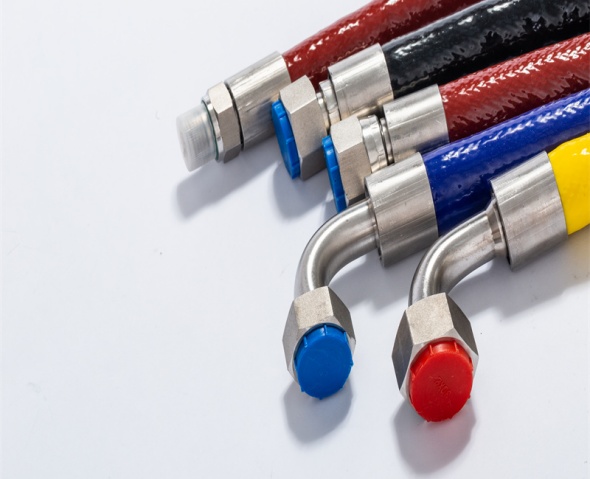

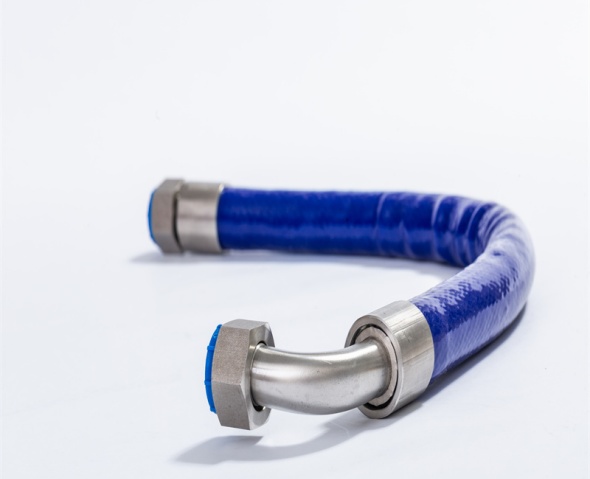

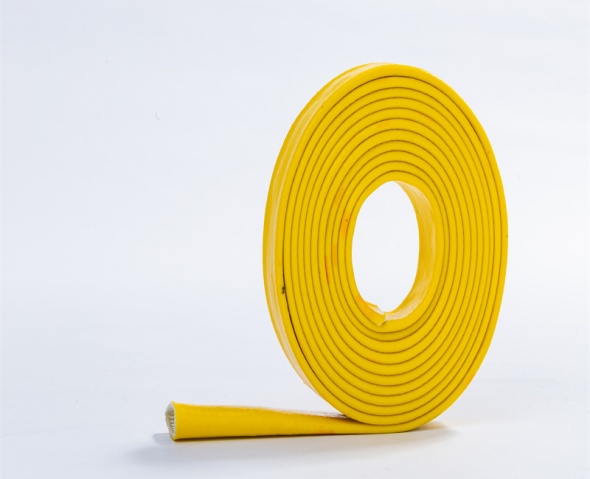

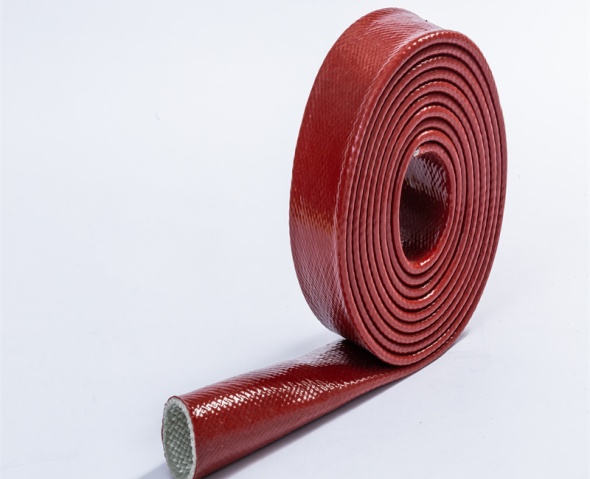

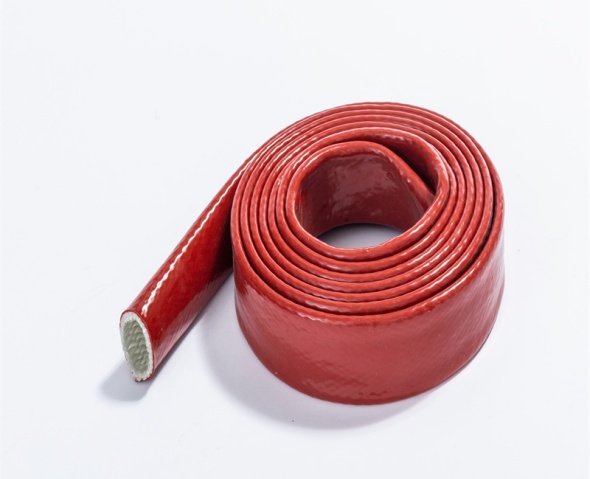

QIAN-ZE silicone fire sleeve is specialized in protecting wires, cables, hoses, oil lines from extreme heat conditions and occasional direct flames. Good thermal insulation and fire resistant performance make QIAN-ZE fire sleeve withstand continuous exposure to 260℃(500℉) and molten splash up to 1650℃ (3000℉). When continuous exposure over 260℃(500℉), the silicone rubber would pulverize with no harm to human while the fiberglass yarn interior can still work with enhanced fire resistant performance that withstand continuous exposure to 650℃(1200℉).

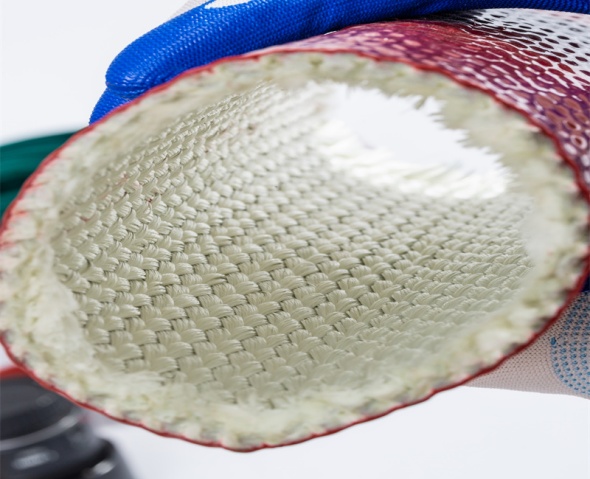

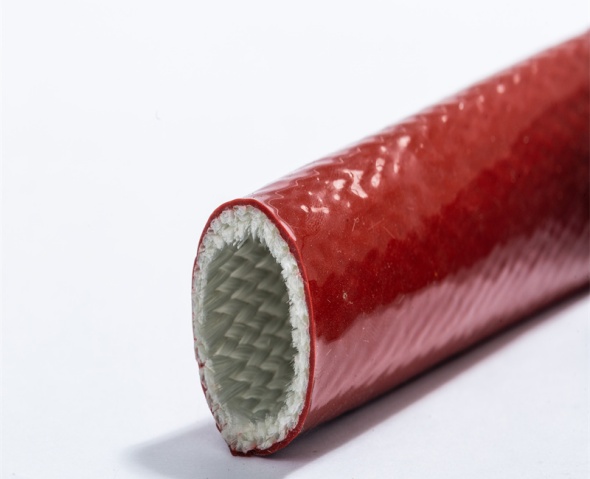

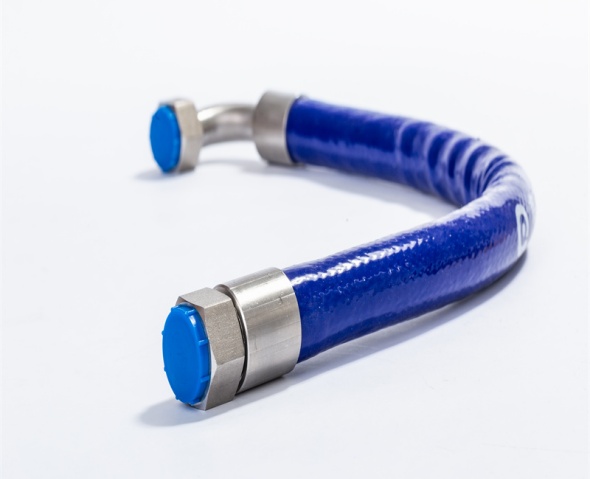

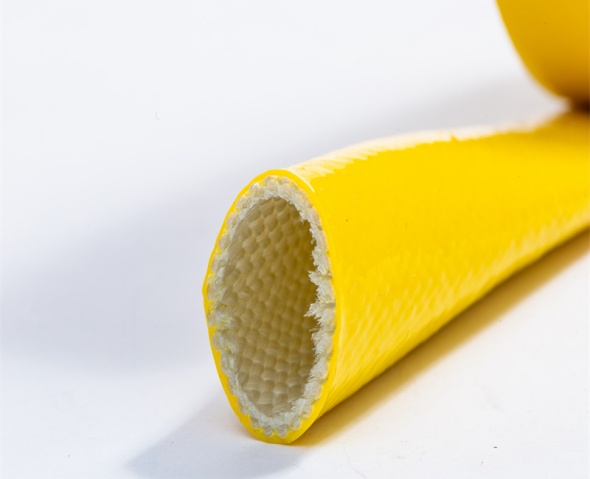

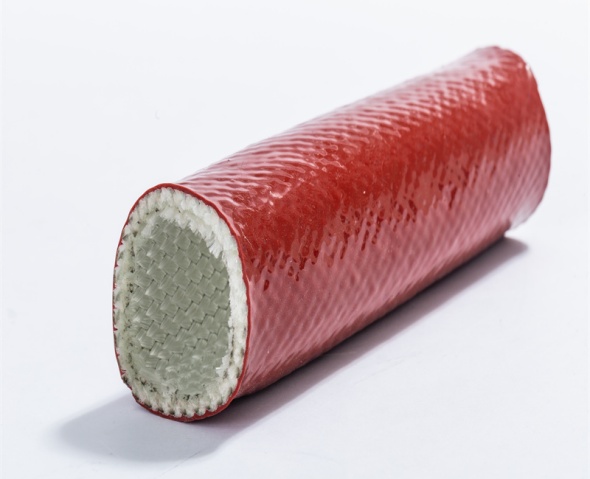

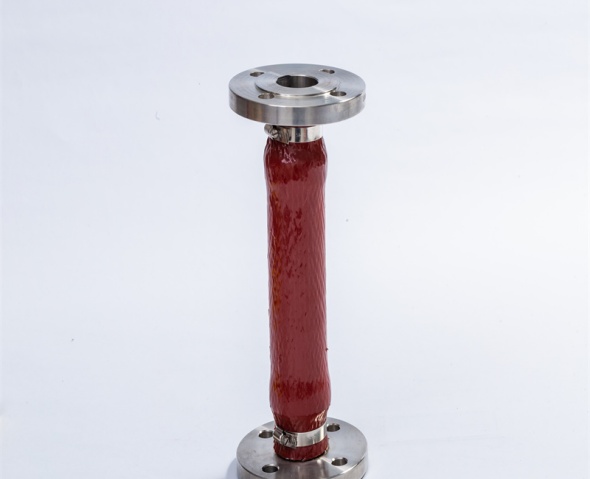

QIAN-ZE silicone fire sleeve is highly resistant to hydraulic fluids, lubricating oils, and fuels. The dense braided fiberglass interior insulates against energy loss in piping and hosing, while the high density silicone coating protects personnel from accidental injury.

Silicone Coated Fiberglass Hose Fire Sleeve

Get a Quote

Hi-temp Firesleeve Quick Reference

Materials	E-grade Fiberglass & Silicone Rubber Coating
Recommended Operating Temperature	Continuous: 260℃(500℉) (Silicone Rubber) 650℃(1200℉)(E-grade Fiberglass) Instantaneous: 1100℃(2012℉)
Size Range	ID: 6.5mm-150mm(1/4”-6”)

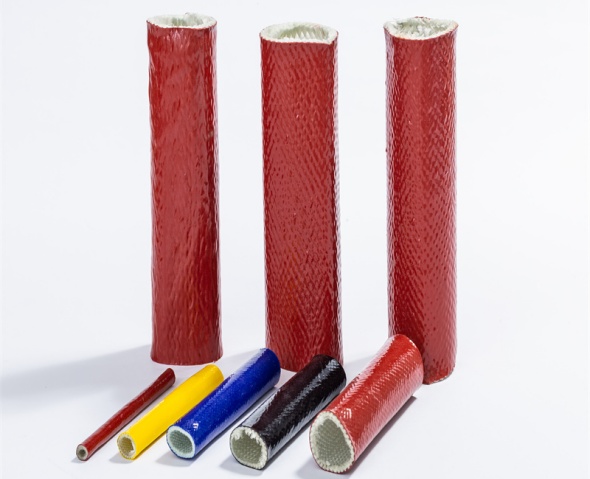

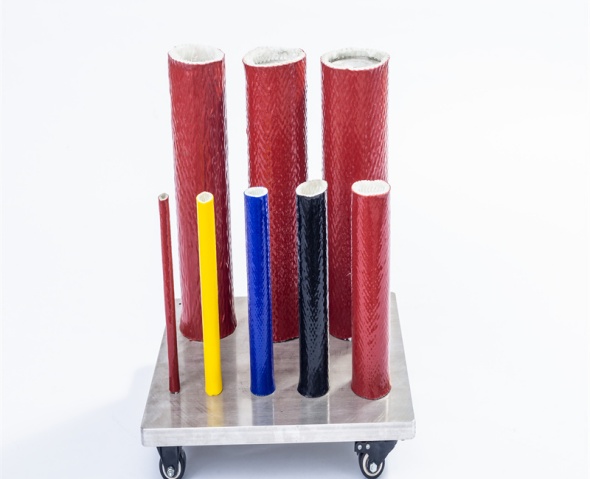

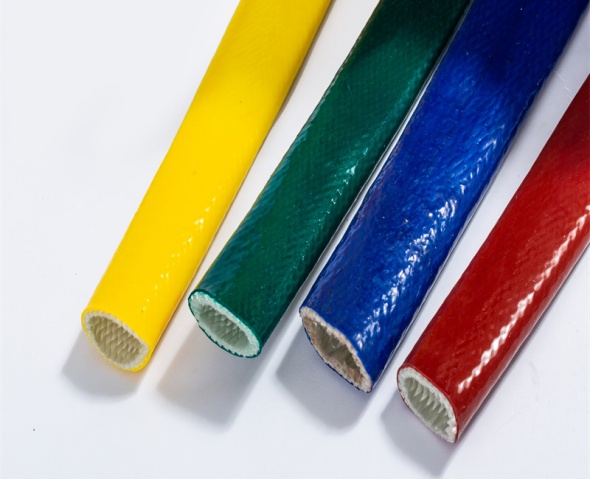

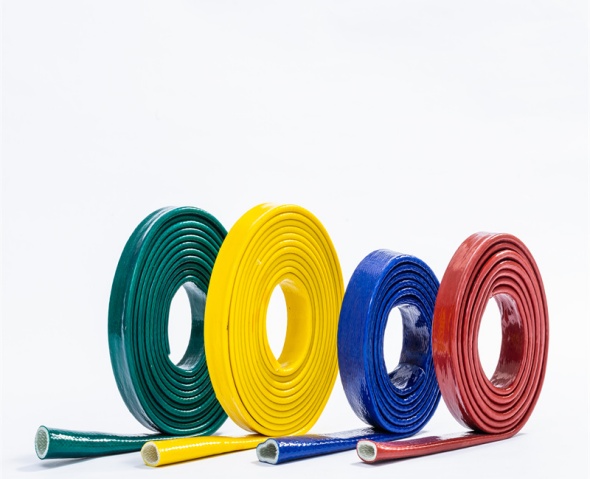

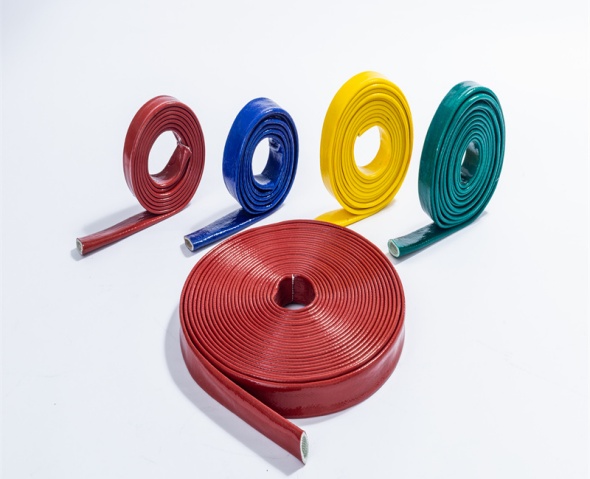

Color	Red (Other colors can also be customized)
Typical Industries	Transportation (Aerospace, Auto, Locomotive, Heavy Equipment) Metals, Iron & Steel Hose Fabrication Oil & Gas Robot Automation
Application	Hose and Cable Heat & Flame Protection Water/Oil Proof Acid Resistant Anti-aging

Specification

XM Hi-temp Firesleeve
XM Part No.	Inner Diameter		Wall Thickness		Roll Length
XM Part No.	mm	inch	mm	inch	m/r
XM-GT-6.5	6.5	1/4	1.5	0.059	100
XM-GT-08	8.0	5/16	1.6	0.063	100
XM-GT-10	10	3/8	1.8	0.071	20/25
XM-GT-12	12	1/2	1.9	0.075	20/25
XM-GT-15	15	5/8	2.1	0.083	20/25
XM-GT-20	20	3/4	2.4	0.095	20/25
XM-GT-22	22	7/8	2.5	0.098	20/25
XM-GT-25	25	1	2.6	0.102	20/25
XM-GT-30	30	1-1/8	2.9	0.114	20/25
XM-GT-32	32	1-1/4	3.0	0.118	20/25
XM-GT-35	35	1-3/8	3.1	0.122	20/25
XM-GT-38	38	1-1/2	3.2	0.126	20/25
XM-GT-40	40	1-5/8	3.4	0.134	20/25
XM-GT-45	45	1-3/4	3.6	0.142	20/25
XM-GT-50	50	2	3.7	0.146	20/25
XM-GT-55	55	2-1/8	3.8	0.150	20/25
XM-GT-60	60	2-3/8	3.8	0.150	20
XM-GT-65	65	2-1/2	4.0	0.157	20
XM-GT-70	70	2-3/4	4.1	0.161	15
XM-GT-75	75	3	4.3	0.169	15
XM-GT-80	80	3-1/8	4.3	0.169	15
XM-GT-85	85	3-3/8	4.5	0.177	15
XM-GT-90	90	3-1/2	4.6	0.181	15
XM-GT-100	100	4	4.7	0.185	15
XM-GT-105	105	4-1/8	4.7	0.185	15
XM-GT-110	110	4-3/8	4.7	0.185	15
XM-GT-115	115	4-1/2	4.8	0.189	15
XM-GT-120	120	4-3/4	4.8	0.189	15
XM-GT-125	125	5	5	0.197	15
XM-GT-130	130	5-1/8	5.2	0.205	15
XM-GT-140	140	5-1/2	5.2	0.205	15
XM-GT-150	150	6	5.2	0.205	15

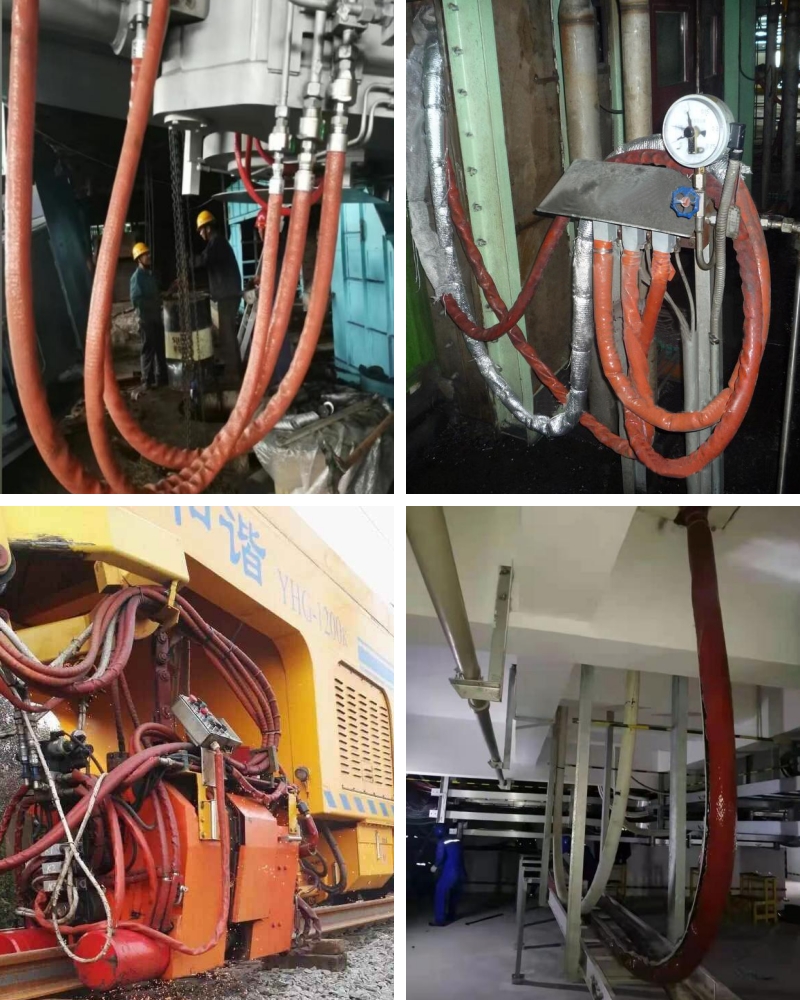

APPLICATION
